Where is asbestos found in a house?

Explore common locations in homes built or refurbished before 2000. The illustration shows examples; it is not a survey, and appearance alone cannot confirm asbestos.

Explore at your paceA closer look around the house

Not sure where to start?Take a six-stop tour, from the roof to the garage.

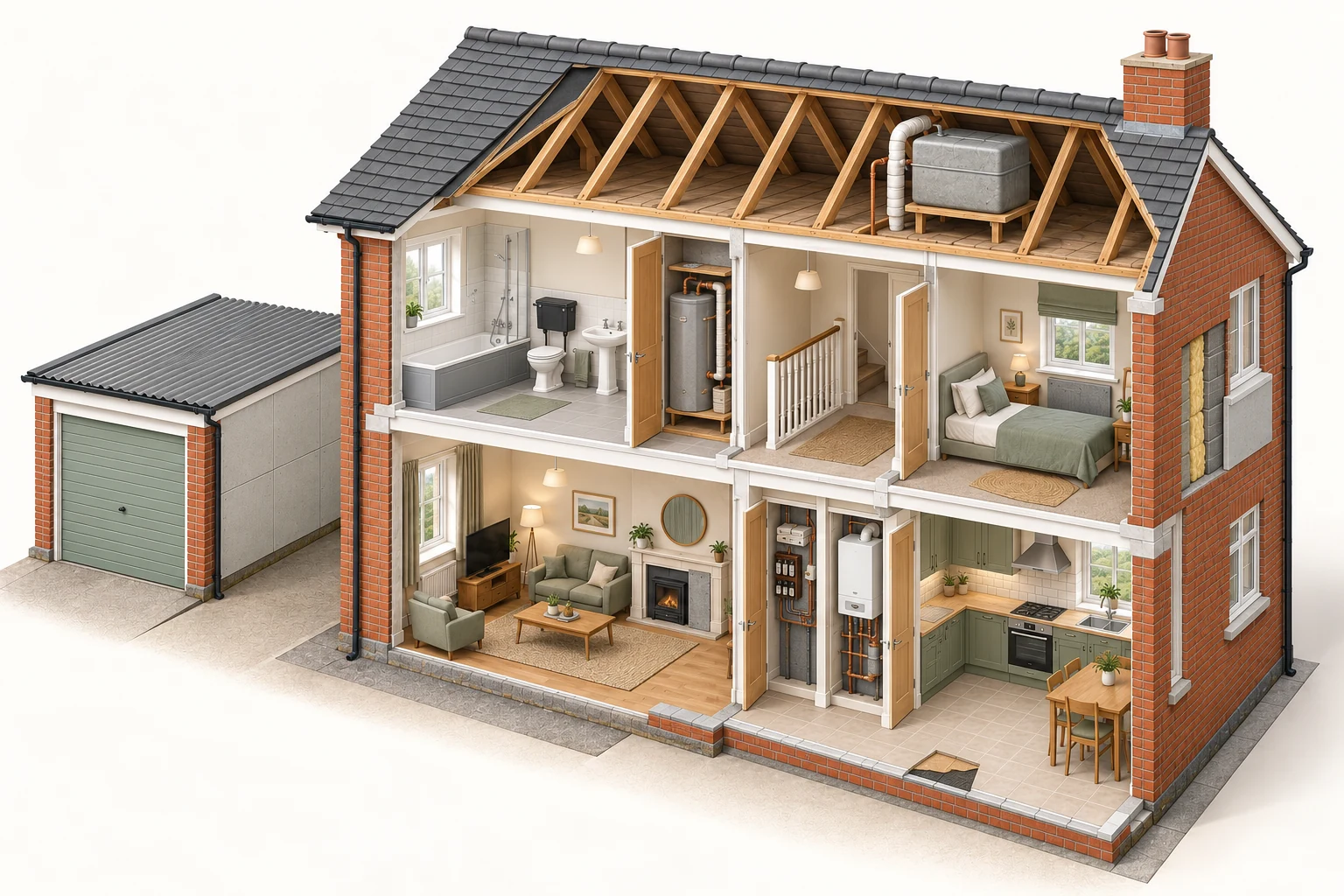

Cutaway home with bathroom, airing cupboard, fuse cupboard, boiler, living room, kitchen, loft and garage.

Choose a room to look closer.

Illustrated examples. Testing confirms whether a material contains asbestos.HSE guide
Whole house · Material guide

Bathroom

Bath panel and older cistern.

Room-by-room guide

Common places asbestos may be found in a home

Asbestos was used in many building products. The examples below follow the rooms and materials in the interactive house. They do not cover every possible location, and only suitable inspection and testing can identify a material.

Bathroom

  • Bath panel

    Some older bath panels are AIB or asbestos cement. Their appearance does not reliably identify the material.

    Asbestos sampling and testing
  • Toilet cistern

    Some older toilet cisterns contain asbestos. Do not drill or break a suspect cistern to check what it is made from.

    Asbestos sampling and testing

Loft

  • Pipe lagging

    Asbestos-containing insulation may be present around older pipes. Pipe lagging can present a higher risk if disturbed, and work may require a licensed contractor.

    The material and planned work need assessing before removal. Some work requires a licensed asbestos contractor.

    Asbestos sampling and testing
  • Cement water tank

    Some older water tanks were made from asbestos cement. Keep suspect material undisturbed and seek advice before repair or removal.

    Asbestos cement removal

Cupboards

  • Airing cupboard lining

    AIB was used in some airing cupboard linings. A similar-looking board is not proof of asbestos, so arrange appropriate assessment before work.

    The material and planned work need assessing before removal. Some work requires a licensed asbestos contractor.

    Asbestos sampling and testing
  • Fuse box backing

    AIB or other asbestos components may be present behind older electrical equipment. Do not remove the panel or disturb the equipment to investigate.

    The material and planned work need assessing before removal. Some work requires a licensed asbestos contractor.

    Asbestos sampling and testing
  • Boiler lining

    AIB and other asbestos materials were used around some boilers and heating systems. The material and planned work should be assessed before anything is disturbed.

    The material and planned work need assessing before removal. Some work requires a licensed asbestos contractor.

    Asbestos sampling and testing

Living & kitchen

  • Textured coating

    Some textured decorative coatings, including older Artex finishes, may contain asbestos. Testing can establish whether a particular coating contains it.

    Textured coating removal
  • Fire backing board

    AIB was used behind some fires as heat protection. Do not remove or damage a suspect backing board.

    The material and planned work need assessing before removal. Some work requires a licensed asbestos contractor.

    Asbestos sampling and testing
  • Vinyl tiles & adhesive

    Some older vinyl floor tiles, backing paper and bitumen adhesive may contain asbestos. The floor build-up needs assessing before lifting or sanding.

    Floor tile and bitumen removal

Bedroom

  • Partition board

    AIB was used in some partition walls and other fire-protection panels. Do not cut or drill a suspect board.

    The material and planned work need assessing before removal. Some work requires a licensed asbestos contractor.

    Asbestos sampling and testing
  • Window infill panel

    Some older internal window panels may be AIB or asbestos cement. A visual check cannot reliably distinguish asbestos-containing from asbestos-free board.

    Asbestos sampling and testing

Roof & exterior

  • Roof slates

    Some older roof tiles and slates were made from asbestos cement. A roof’s appearance alone cannot confirm its material.

    Asbestos cement removal
  • Flat-roof felt

    Older flat roofs can be covered with bituminous felt that may contain asbestos fibres. It is the flat-roof covering itself, not felt beneath roof tiles.

    Asbestos sampling and testing
  • Exterior window panel

    Older window infill panels may be asbestos insulating board (AIB) or asbestos cement. These materials need different assessment and handling.

    Asbestos cement removal
  • Soffit / fascia

    Soffits and fascias beneath the eaves may be AIB or asbestos cement. The product and its condition should be established before work.

    Asbestos cement removal
  • Downpipe

    Older gutters and downpipes may be asbestos cement. Avoid cutting, drilling or breaking suspect rainwater goods.

    Asbestos cement removal

Garage

  • Corrugated roof

    Corrugated asbestos cement sheets were used on some older garage roofs and outbuildings. Avoid walking on, cutting or breaking suspect sheets.

    Garage roof removal
  • Garage ceiling lining

    Garage ceiling boards may be AIB or asbestos cement, and the roof covering above is a separate material. They need separate assessment; some AIB work requires a licensed contractor.

    Check the ceiling separately from the roof sheets. Most AIB removal needs a licensed contractor.

    Asbestos sampling and testing
  • Wall panels

    Some older garage and outbuilding wall panels are asbestos cement. Their condition and the planned work affect how they should be handled.

    Asbestos cement removal

If you suspect a material contains asbestos

Do not cut, drill, sand or remove it to find out. If it is damaged or work is planned, stop and get appropriate advice. Some asbestos work must be done by a licensed contractor.

Read the HSE guide to asbestos locations and what to do
